Total (Excl. GST)
₹5,01,03,712.7
GST @ 18%
₹90,18,668.29
Grand Total (Incl. GST)
₹5,91,22,380.99
Total Sections
16
Summary
| S.NO | DESCRIPTION | AMOUNT (INR) |
|---|---|---|
| A | Functional Lighting | |
| A1 | Vivanta- All Type Rooms | ₹1,11,66,617 |
| A2 | Vivanta- Corridor | ₹40,53,989.5 |
| A3 | Vivanta- Lift Lobby | ₹1,14,880 |
| A4 | Vivanta- GF Public Area | ₹84,69,765 |
| A4 | Vivanta- MZ Public Area | ₹15,39,150 |
| A4 | Vivanta- 1F Public Area | ₹7,43,065 |
| A5 | Vivanta- Lift Cabins | ₹63,880 |
| A6 | Vivanta- Façade | ₹96,95,400 |
| A7 | Vivanta & Ginger- Terrace Landscape | ₹9,43,540 |
| A8 | Ginger- All Type Rooms | ₹62,22,986.2 |
| A9 | Ginger- Corridor | ₹6,68,640 |
| A10 | Ginger- Lift lobby | ₹67,360 |
| A11 | Ginger- Public Area | ₹19,53,015 |
| A12 | Ginger- Lift Cabin | ₹14,400 |
| A13 | Ginger- Façade | ₹5,29,325 |
| A14 | Vivanta & Ginger- GF Landscape | ₹38,57,700 |
| Total Amount (Excl. GST) | ₹5,01,03,712.7 | |
| GST - 18% | ₹90,18,668.29 | |
| Total Amount (Incl. GST) | ₹5,91,22,380.99 | |
01
16 items · ₹1,11,66,617A1-ALL TYPE ROOMS
ARCHITECTURAL LIGHTING - VIVANTA TOTAL ROOMS
RDL - RECESSED DOWNLIGHTJL - JOINERY LIGHTNL - NIGHT LAMPCL - COVE LIGHT

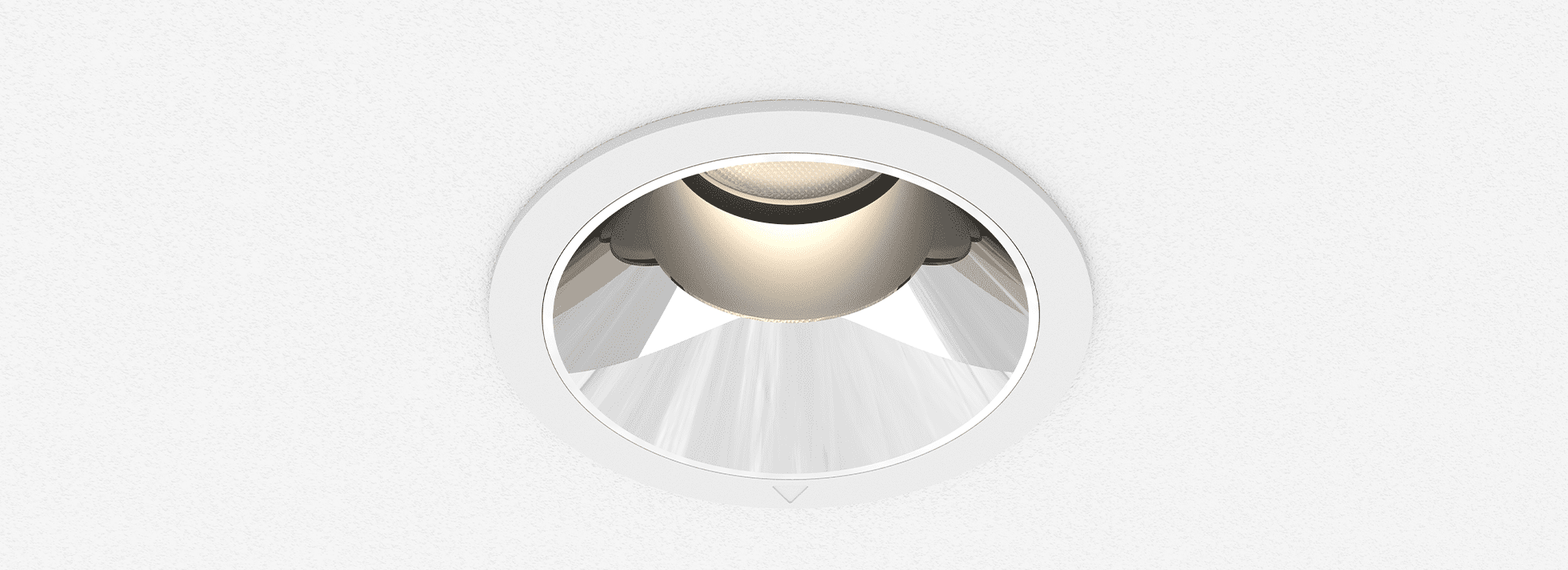

#1RDL1FOYER
₹10,94,100
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | FOYER | — |
| Mounting Type | LED | — |
| Dimension | DIA = 62mm, H = 76mm, CUTOUT = 55mm | — |
| Wattage | 5W | — |
| Lumen Output | 299 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 29° | — |
| IP Rating | IP20 | — |
| Optics | REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 20 NOS | — |
| Unit Rate (INR) | ₹1,050 | — |
| Total Amount (INR) | ₹10,94,100 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 710 | — |
| TWIN ROOMS QUANTITY (62) | 124 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 8 | — |
| SUITE ROOMS QUANTITY (10) | 80 | — |
| SERVICEAPARTMENT QUANTITY (20) | 120 | — |
| TOTAL ROOMS QUANTITY | 1,042 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#2RDL2BEDROOM,
LUGGAGE RACK
₹15,16,500
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | BEDROOM, LUGGAGE RACK | — |
| Mounting Type | LED | — |
| Dimension | DIA = 50mm, H = 54mm, CUTOUT = 46mm | — |
| Wattage | 3W | — |
| Lumen Output | 197 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 29 NOS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹15,16,500 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 1,065 | — |
| TWIN ROOMS QUANTITY (62) | 310 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 20 | — |
| SUITE ROOMS QUANTITY (10) | 30 | — |
| SERVICEAPARTMENT QUANTITY (20) | 260 | — |
| TOTAL ROOMS QUANTITY | 1,685 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#3RDL2ABEDROOM
₹8,11,800
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | BEDROOM | — |
| Mounting Type | LED | — |
| Dimension | DIA = 50mm, H = 54mm, CUTOUT = 46mm | — |
| Wattage | 3W | — |
| Lumen Output | 197 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 16° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 6 NOS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹8,11,800 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 710 | — |
| TWIN ROOMS QUANTITY (62) | 124 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 8 | — |
| SUITE ROOMS QUANTITY (10) | 20 | — |
| SERVICEAPARTMENT QUANTITY (20) | 40 | — |
| TOTAL ROOMS QUANTITY | 902 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#4RDL3TOILET, W/C & SHOWER
₹20,13,525
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TOILET, W/C & SHOWER | — |
| Mounting Type | LED | — |
| Dimension | DIA = 94mm, H = 70mm, CUTOUT = 84mm | — |
| Wattage | 5W | — |
| Lumen Output | 350 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 26° | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 19 NOS | — |
| Unit Rate (INR) | ₹1,425 | — |
| Total Amount (INR) | ₹20,13,525 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 1,065 | — |
| TWIN ROOMS QUANTITY (62) | 186 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 12 | — |
| SUITE ROOMS QUANTITY (10) | 50 | — |
| SERVICEAPARTMENT QUANTITY (20) | 100 | — |
| TOTAL ROOMS QUANTITY | 1,413 | — |
| Remarks | THIS IS A PIN - HOLE LIGHT FIXTURE | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#5NL1FOYER,
BEDROOM
₹5,02,645
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | FOYER, BEDROOM | — |
| Mounting Type | LED | — |
| Dimension | DIA = 44mm, H = 56mm, CUTOUT = 40mm | — |
| Wattage | 1W | — |
| Lumen Output | 50 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP44 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 17 NOS | — |
| Unit Rate (INR) | ₹715 | — |
| Total Amount (INR) | ₹5,02,645 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 355 | — |
| TWIN ROOMS QUANTITY (62) | 186 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 12 | — |
| SUITE ROOMS QUANTITY (10) | 50 | — |
| SERVICEAPARTMENT QUANTITY (20) | 100 | — |
| TOTAL ROOMS QUANTITY | 703 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |

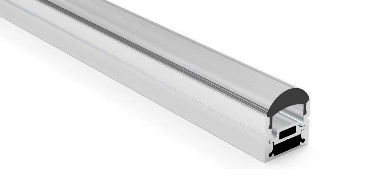

#6CL1BEDROOM
₹7,71,744.75
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | BEDROOM | — |
| Mounting Type | CORNER ALUMINIUM PROFILE | — |
| Dimension | W = 16mm, H = 16mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 112 MTRS | — |
| Unit Rate (INR) | ₹127.5 | — |
| Total Amount (INR) | ₹7,71,744.75 | — |
| Components / Accessories | ||
| LED - Power | 10W/M | — |
| LED - Lumens | 950 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹8,17,141.5 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹5,32,717.5 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 4,153.5 | — |
| TWIN ROOMS QUANTITY (62) | 725.4 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 44 | — |
| SUITE ROOMS QUANTITY (10) | 390 | — |
| SERVICEAPARTMENT QUANTITY (20) | 740 | — |
| TOTAL ROOMS QUANTITY | 6,052.9 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#7CL2SUITE & SERVICE ROOMS CURTAIN
₹3,02,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | SUITE & SERVICE ROOMS CURTAIN | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 16mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | 10° | — |
| IP Rating | IP33 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 22 MTRS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹3,02,400 | — |
| Components / Accessories | ||
| LED - COB - Power | 10W/M | — |
| LED - COB - Lumens | 950 LM/M | — |
| LED - COB - CCT | 2700K/3000K | — |
| LED - COB - IP | IP20 | — |
| LED - COB - Control | SWITCH ON / OFF | — |
| LED - COB - Amount | ₹45,360 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹93,870 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | — | — |
| TWIN ROOMS QUANTITY (62) | — | — |
| ACCESIBLE ROOMS QUANTITY (4) | — | — |
| SUITE ROOMS QUANTITY (10) | 96 | — |
| SERVICEAPARTMENT QUANTITY (20) | 240 | — |
| TOTAL ROOMS QUANTITY | 336 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#8CL3SUITE & SERVICE ROOMS SHOWER
₹6,375
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | SUITE & SERVICE ROOMS SHOWER | — |
| Mounting Type | CORNER ALUMINIUM PROFILE | — |
| Dimension | W = 16mm, H = 16mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 4 MTRS | — |
| Unit Rate (INR) | ₹127.5 | — |
| Total Amount (INR) | ₹6,375 | — |
| Components / Accessories | ||
| LED - Power | 10W/M | — |
| LED - Lumens | 950 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP66 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹6,750 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹22,500 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | — | — |
| TWIN ROOMS QUANTITY (62) | — | — |
| ACCESIBLE ROOMS QUANTITY (4) | — | — |
| SUITE ROOMS QUANTITY (10) | 20 | — |
| SERVICEAPARTMENT QUANTITY (20) | 30 | — |
| TOTAL ROOMS QUANTITY | 50 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#9JL1WARDROBE
₹1,80,630
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | WARDROBE | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 20mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | BLACK DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | BLACK | — |
| Quantity | 11 MTRS | — |
| Unit Rate (INR) | ₹337.5 | — |
| Total Amount (INR) | ₹1,80,630 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹72,252 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP67 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹3,38,250 | — |
| - - Power | 0.3W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹3,72,075 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 426 | — |
| TWIN ROOMS QUANTITY (62) | 74.4 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 4.8 | — |
| SUITE ROOMS QUANTITY (10) | 10 | — |
| SERVICEAPARTMENT QUANTITY (20) | 20 | — |
| TOTAL ROOMS QUANTITY | 535.2 | — |
| Remarks | TO BE SUPPLIED WITH BLACK DIFFUSER, MOUNTING CLIPS & END CAPS. | |
#10JL2BED HEAD BOARD
₹2,46,975
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | BED HEAD BOARD | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 17mm, H = 14mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 19 MTRS | — |
| Unit Rate (INR) | ₹150 | — |
| Total Amount (INR) | ₹2,46,975 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹2,09,928.75 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹3,38,250 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 1,313.5 | — |
| TWIN ROOMS QUANTITY (62) | 229.4 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 13.6 | — |
| SUITE ROOMS QUANTITY (10) | 90 | — |
| SERVICEAPARTMENT QUANTITY (20) | — | — |
| TOTAL ROOMS QUANTITY | 1,646.5 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#11JL4BELOW VANITY
₹97,950
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | BELOW VANITY | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | L=1000mm, W = 17mm, H = 14mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 19 MTRS | — |
| Unit Rate (INR) | ₹150 | — |
| Total Amount (INR) | ₹97,950 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP65 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹83,257.5 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹4,28,250 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 355 | — |
| TWIN ROOMS QUANTITY (62) | 62 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 4 | — |
| SUITE ROOMS QUANTITY (10) | 32 | — |
| SERVICEAPARTMENT QUANTITY (20) | 200 | — |
| TOTAL ROOMS QUANTITY | 653 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#12JL5SUITE ROOM SHOWER NICHE
₹4,040
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | SUITE ROOM SHOWER NICHE | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 3 MTRS | — |
| Unit Rate (INR) | ₹202 | — |
| Total Amount (INR) | ₹4,040 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 490 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP65 | — |
| LED - Control | SWITCH ON/OFF | — |
| LED - Amount | ₹7,500 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹7,500 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | — | — |
| TWIN ROOMS QUANTITY (62) | — | — |
| ACCESIBLE ROOMS QUANTITY (4) | — | — |
| SUITE ROOMS QUANTITY (10) | 20 | — |
| SERVICEAPARTMENT QUANTITY (20) | — | — |
| TOTAL ROOMS QUANTITY | 20 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#13JL6SERVICE APARTMENT KITCHEN
₹18,180
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | SERVICE APARTMENT KITCHEN | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 7 MTRS | — |
| Unit Rate (INR) | ₹202 | — |
| Total Amount (INR) | ₹18,180 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 490 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP65 | — |
| LED - Control | SWITCH ON/OFF | — |
| LED - Amount | ₹33,750 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹15,000 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | — | — |
| TWIN ROOMS QUANTITY (62) | — | — |
| ACCESIBLE ROOMS QUANTITY (4) | — | — |
| SUITE ROOMS QUANTITY (10) | — | — |
| SERVICEAPARTMENT QUANTITY (20) | 90 | — |
| TOTAL ROOMS QUANTITY | 90 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#14JL7SERVICE APARTMENT TV PANEL
₹40,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | SERVICE APARTMENT TV PANEL | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 12 MTRS | — |
| Unit Rate (INR) | ₹202 | — |
| Total Amount (INR) | ₹40,400 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 490 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON/OFF | — |
| LED - Amount | ₹75,000 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹60,000 | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | — | — |
| TWIN ROOMS QUANTITY (62) | — | — |
| ACCESIBLE ROOMS QUANTITY (4) | — | — |
| SUITE ROOMS QUANTITY (10) | — | — |
| SERVICEAPARTMENT QUANTITY (20) | 200 | — |
| TOTAL ROOMS QUANTITY | 200 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#1SPL1KING, TWIN ,& ACCESIBLE ROOMS TOILET
-
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | KING, TWIN ,& ACCESIBLE ROOMS TOILET | — |
| Mounting Type | E14 LED (RETRO FIT) | — |
| Dimension | DIA = 100mm, H = 500mm | — |
| Wattage | -- | — |
| Lumen Output | — | — |
| CRI | >90 | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP44 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | WHITE | — |
| Quantity | 6 NOS | — |
| Unit Rate (INR) | — | — |
| Total Amount (INR) | — | — |
| Components / Accessories | ||
| E14 LED - Power | 4W | — |
| E14 LED - Lumens | 400 LM | — |
| E14 LED - CCT | 2700K | — |
| E14 LED - IP | IP20 | — |
| E14 LED - Control | SWITCH ON / OFF | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 124 | — |
| TWIN ROOMS QUANTITY (62) | 710 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 8 | — |
| SUITE ROOMS QUANTITY (10) | — | — |
| SERVICEAPARTMENT QUANTITY (20) | — | — |
| TOTAL ROOMS QUANTITY | 842 | — |
| Remarks | THIS IS A PIN - HOLE LIGHT FIXTURE | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#2TL1ALL ROOMS BEDROOM
-
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image | — | — |
| Location | ALL ROOMS BEDROOM | — |
| Mounting Type | LED | — |
| Dimension | DIA = 44mm, H = 56mm, CUTOUT = 40mm | — |
| Wattage | 4W | — |
| Lumen Output | 400 LM | — |
| CRI | >90 | — |
| CCT | 2700K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP44 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 5 NOS | — |
| Unit Rate (INR) | — | — |
| Total Amount (INR) | — | — |
| Room Breakdown | ||
| KING ROOM QUANTITY (355) | 62 | — |
| TWIN ROOMS QUANTITY (62) | 355 | — |
| ACCESIBLE ROOMS QUANTITY (4) | 4 | — |
| SUITE ROOMS QUANTITY (10) | 10 | — |
| SERVICEAPARTMENT QUANTITY (20) | 20 | — |
| TOTAL ROOMS QUANTITY | 451 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
Section Total₹1,11,66,617
02
5 items · ₹40,53,989.5A2-VIVANTA CORRIDOR
ARCHITECTURAL LIGHTING - VIVANTA GUEST CORRIDOR
RDL - RECESSED DOWNLIGHTJL - JOINERY LIGHTSWL - SURFACCE WALL LIGHTCL - COVE LIGHT
#1RDL1CORRIDOR, LIFT LOBBY
₹6,23,700
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | CORRIDOR, LIFT LOBBY | — |
| Mounting Type | LED | — |
| Dimension | DIA = 62mm, H = 76mm, CUTOUT = 55mm | — |
| Wattage | 5W | — |
| Lumen Output | 299 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 29° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 54 NOS | — |
| Unit Rate (INR) | ₹1,050 | — |
| Total Amount (INR) | ₹6,23,700 | — |
| Room Breakdown | ||
| 11 ROOMS QUANTITY | 594 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#2RDL2ALIFT LOBBY
₹39,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | LIFT LOBBY | — |
| Mounting Type | LED | — |
| Dimension | DIA = 50mm, H = 54mm, CUTOUT = 46mm | — |
| Wattage | 3W | — |
| Lumen Output | 197 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 16° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 4 NOS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹39,600 | — |
| Room Breakdown | ||
| 11 ROOMS QUANTITY | 44 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#3RDL2BROOM ENTRANCE
₹4,65,300
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | ROOM ENTRANCE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 50mm, H = 54mm, CUTOUT = 46mm | — |
| Wattage | 3W | — |
| Lumen Output | 197 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 16° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 47 NOS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹4,65,300 | — |
| Room Breakdown | ||
| 11 ROOMS QUANTITY | 517 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#4CL1CORRIDOR ,
LIFT LOBBY
₹5,68,012.5
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | CORRIDOR , LIFT LOBBY | — |
| Mounting Type | CORNER ALUMINIUM PROFILE | — |
| Dimension | W = 16mm, H = 16mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 405 MTRS | — |
| Unit Rate (INR) | ₹127.5 | — |
| Total Amount (INR) | ₹5,68,012.5 | — |
| Components / Accessories | ||
| LED - Power | 10W/M | — |
| LED - Lumens | 950 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹6,01,425 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹4,45,984 | — |
| Room Breakdown | ||
| 11 ROOMS QUANTITY | 4,455 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#5JL3ROOM ENTRANCE
₹3,19,968
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | ROOM ENTRANCE | — |
| Mounting Type | — | — |
| Dimension | H = 12mm W = 6mm | — |
| Wattage | -- | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 144 MTRS | — |
| Unit Rate (INR) | ₹202 | — |
| Total Amount (INR) | ₹3,19,968 | — |
| Components / Accessories | ||
| LED - Power | 5W/M | — |
| LED - Lumens | 480 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹5,94,000 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹3,96,000 | — |
| Room Breakdown | ||
| 11 ROOMS QUANTITY | 1,584 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹40,53,989.5
03
3 items · ₹1,14,880A3-LIFT LOBBY
ARCHITECTURAL LIGHTING - VIVANTA PUBLIC AREA LIFT LOBBY
RDL - RECESSED DOWNLIGHTCL - COVE LIGHT
#1RDL1LIFT LOBBY
₹43,200
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | LIFT LOBBY | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 12 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹43,200 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#2RDL2LIFT LOBBY
₹25,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | LIFT LOBBY | — |
| Mounting Type | LED | — |
| Dimension | DIA = 38mm, H = 95mm, CUT OUT DIA = 35mm | — |
| Wattage | 7W | — |
| Lumen Output | 665LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 15° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE | — |
| Quantity | 8 NOS | — |
| Unit Rate (INR) | ₹3,200 | — |
| Total Amount (INR) | ₹25,600 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#19CL3LIFT LOBBY
₹10,500
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | LIFT LOBBY | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 28 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹10,500 | — |
| Components / Accessories | ||
| SIDE BEND - IP | IP20 | — |
| SIDE BEND - Control | — | — |
| SIDE BEND - Amount | ₹9,800 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹3,780 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹22,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹1,14,880
04
31 items · ₹84,69,765A4-GF-PUBLIC AREA
ARCHITECTURAL LIGHTING - VIVANTA PUBLIC AREA
RDL - RECESSED DOWNLIGHTJL - JOINERY LIGHTSPL - SUSPENDED PENDENT LIGHTCL - COVE LIGHTSDL - SURFACE DOWNLIGHTJL - JOINERY LIGHT
#1RDL1LIFT
₹21,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | LIFT | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 6 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹21,600 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#2RDL2LIFT
₹35,200
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | LIFT | — |
| Mounting Type | LED | — |
| Dimension | DIA = 38mm, H = 95mm, CUT OUT DIA = 35mm | — |
| Wattage | 7W | — |
| Lumen Output | 665LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 15° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE | — |
| Quantity | 11 NOS | — |
| Unit Rate (INR) | ₹3,200 | — |
| Total Amount (INR) | ₹35,200 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#3RDL3RECEPTION
₹7,46,200
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | RECEPTION | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1830 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 164 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹7,46,200 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#4RDL3ARECEPTION
₹61,200
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | RECEPTION | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1830 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 17 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹61,200 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#5RDL4DINING
₹2,36,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | DINING | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1830 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 52 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹2,36,600 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#6RDL4ADINING
₹3,27,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | DINING | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1830 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 10° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | BLACK TRIM + CHROME REFLECTOR | — |
| Quantity | 72 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹3,27,600 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#7RDL4BDINING
₹1,91,100
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | DINING | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1830 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 10° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 42 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹1,91,100 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#8RDL5BANQUET HALL
₹10,01,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | BANQUET HALL | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1830 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 10° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 220 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹10,01,000 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#9RDL6TOILET
₹48,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TOILET | — |
| Mounting Type | LED | — |
| Dimension | DIA = 59mm, H = 72mm, CUT OUT DIA = 55mm | — |
| Wattage | 7W | — |
| Lumen Output | 496 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 49° | — |
| IP Rating | IP44 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 64 NOS | — |
| Unit Rate (INR) | ₹750 | — |
| Total Amount (INR) | ₹48,000 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#10RDL6ATOILET
₹18,750
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TOILET | — |
| Mounting Type | LED | — |
| Dimension | DIA = 59mm, H = 72mm, CUT OUT DIA = 55mm | — |
| Wattage | 7W | — |
| Lumen Output | 496 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 15° | — |
| IP Rating | IP44 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 25 NOS | — |
| Unit Rate (INR) | ₹750 | — |
| Total Amount (INR) | ₹18,750 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#11RDL7MEETING ROOMS
₹1,08,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | MEETING ROOMS | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | >90 | — |
| CCT | 2700K-6500K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 30 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹1,08,000 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#12RDL8SPECIALIY RESTAURANT
₹95,550
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | SPECIALIY RESTAURANT | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1830 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | BLACK TRIM + CHROME REFLECTOR | — |
| Quantity | 21 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹95,550 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#13RDL8ASPECIALIY RESTAURANT
₹14,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | SPECIALIY RESTAURANT | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 7W | — |
| Lumen Output | 435 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 15° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | BLACK TRIM + CHROME REFLECTOR | — |
| Quantity | 4 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹14,400 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#14RDL9BANQUET LOBBY ,
MEETING ROOMS PRE - FUNCTION
₹3,36,700
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | BANQUET LOBBY , MEETING ROOMS PRE - FUNCTION | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1830 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 74 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹3,36,700 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#15RDL10BANQUET PRE-FUNCTION
₹3,27,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | BANQUET PRE-FUNCTION | — |
| Mounting Type | LED | — |
| Dimension | DIA =63mm, W = 91mm, | — |
| Wattage | 15W | — |
| Lumen Output | 1198LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 50° | — |
| IP Rating | IP20 | — |
| Optics | REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE | — |
| Quantity | 84 NOS | — |
| Unit Rate (INR) | ₹3,900 | — |
| Total Amount (INR) | ₹3,27,600 | — |
| Remarks | TO BE SUPPLIED WITH TRIM SET | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#15RDL14TOILET
₹29,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image | | — |
| Location | TOILET | — |
| Mounting Type | LED | — |
| Dimension | L = 147mm, H = 55mm, W = 42mm, CUT OUT 142x37mm | — |
| Wattage | 11W | — |
| Lumen Output | 826 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 33° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 20 NOS | — |
| Unit Rate (INR) | ₹1,450 | — |
| Total Amount (INR) | ₹29,000 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#15RWW1RECEPTION
₹28,800
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image | | — |
| Location | RECEPTION | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 70mm, CUT OUT DIA = 78mm | — |
| Wattage | 7W | — |
| Lumen Output | 370 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | ASSYMETRIC | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE | — |
| Quantity | 8 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹28,800 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#15RWW1ARECEPTION
₹7,200
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image | | — |
| Location | RECEPTION | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 70mm, CUT OUT DIA = 78mm | — |
| Wattage | 7W | — |
| Lumen Output | 370 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | ASSYMETRIC | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | BLACK | — |
| Quantity | 2 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹7,200 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#16SDL1BANQUET PRE-FUNCTION
₹1,68,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | BANQUET PRE-FUNCTION | — |
| Mounting Type | LED | — |
| Dimension | DIA =65mm, W = 125mm, | — |
| Wattage | 15W | — |
| Lumen Output | 1069LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 43° | — |
| IP Rating | IP20 | — |
| Optics | REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | DALI | — |
| Material / Finish | WHITE | — |
| Quantity | 48 NOS | — |
| Unit Rate (INR) | ₹3,500 | — |
| Total Amount (INR) | ₹1,68,000 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#17CL1RECEPTION,
BANQUET PRE-FUNCTION,
MEETING ROOM PRE FUNCTION
₹2,64,750
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | RECEPTION, BANQUET PRE-FUNCTION, MEETING ROOM PRE FUNCTION | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 706 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹2,64,750 | — |
| Components / Accessories | ||
| SIDE BEND - IP | IP20 | — |
| SIDE BEND - Control | — | — |
| SIDE BEND - Amount | ₹2,47,100 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹95,310 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹4,07,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#18CL2RECEPTION,
BANQUET PRE FUNCTION
₹15,520
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | RECEPTION, BANQUET PRE FUNCTION | — |
| Mounting Type | LED | — |
| Dimension | W = 14mm, H = 14mm | — |
| Wattage | 20W/M | — |
| Lumen Output | 1632 LM/M | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP20 | — |
| Optics | DIFFUSER | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE | — |
| Quantity | 32 MTRS | — |
| Unit Rate (INR) | ₹485 | — |
| Total Amount (INR) | ₹15,520 | — |
| Components / Accessories | ||
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹33,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#19CL3RECEPTION,
MEETING ROOM
₹1,51,875
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | RECEPTION, MEETING ROOM | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 405 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹1,51,875 | — |
| Components / Accessories | ||
| SIDE BEND - IP | IP20 | — |
| SIDE BEND - Control | — | — |
| SIDE BEND - Amount | ₹1,41,750 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹54,675 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹2,69,500 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#20CL4SPECIALIY RESTAURANT,
₹1,23,750
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | SPECIALIY RESTAURANT, | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | DIA = 28mm, W = 13mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | BLACK | — |
| Quantity | 45 MTRS | — |
| Unit Rate (INR) | ₹2,750 | — |
| Total Amount (INR) | ₹1,23,750 | — |
| Components / Accessories | ||
| LED - Power | 15W/M | — |
| LED - Lumens | 950 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹6,075 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹27,500 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#21CL5RECEPTION
₹13,500
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | RECEPTION | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 17mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | 10° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 15 MTRS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹13,500 | — |
| Components / Accessories | ||
| LED - Power | 10W/M | — |
| LED - Lumens | 1474 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹2,025 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹11,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#22CL6DINING,
SPECIALIY RESTAURANT,
BANQUET HALL
₹73,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | DINING, SPECIALIY RESTAURANT, BANQUET HALL | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP20 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 367 MTRS | — |
| Unit Rate (INR) | ₹200 | — |
| Total Amount (INR) | ₹73,400 | — |
| Components / Accessories | ||
| LED - Power | 10W/M | — |
| LED - Lumens | 950 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹49,545 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹1,54,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#23JL2RECEPTION, DINING
₹8,100
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | RECEPTION, DINING | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 36 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹8,100 | — |
| Components / Accessories | ||
| SIDE BEND - IP | IP20 | — |
| SIDE BEND - Control | — | — |
| SIDE BEND - Amount | ₹7,200 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹4,860 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹27,500 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#24JL3RECEPTION,
DINING,
MEETING ROOM
₹19,560
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | RECEPTION, DINING, MEETING ROOM | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 10mm, H = 13mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP33 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 163 MTRS | — |
| Unit Rate (INR) | ₹120 | — |
| Total Amount (INR) | ₹19,560 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹22,005 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹1,50,400 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#25JL4BANQUET HALL
₹15,750
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | BANQUET HALL | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 70 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹15,750 | — |
| Components / Accessories | ||
| TOP BEND - IP | IP20 | — |
| TOP BEND - Control | — | — |
| TOP BEND - Amount | ₹14,000 | — |
| LED - Power | 5W/M | — |
| LED - Lumens | 480 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹9,450 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹19,27,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#26JL5DINING
₹12,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | DINING | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 32 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹12,000 | — |
| Components / Accessories | ||
| SIDE BEND - IP | IP20 | — |
| SIDE BEND - Control | — | — |
| SIDE BEND - Amount | ₹11,200 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹4,320 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹33,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#27JL6SPECIALIY RESTAURANT,
₹29,640
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | SPECIALIY RESTAURANT, | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 10mm, H = 13mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP33 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 247 MTRS | — |
| Unit Rate (INR) | ₹120 | — |
| Total Amount (INR) | ₹29,640 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹33,345 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹79,900 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#28JL7DINING
₹34,125
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | DINING | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 91 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹34,125 | — |
| Components / Accessories | ||
| TOP BEND - IP | IP20 | — |
| TOP BEND - Control | — | — |
| TOP BEND - Amount | ₹31,850 | — |
| LED - Power | 5W/M | — |
| LED - Lumens | 480 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹12,285 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹38,500 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹84,69,765
05
10 items · ₹15,39,150A4-GF-MZ-PUBLIC AREA
ARCHITECTURAL LIGHTING - VIVANTA PUBLIC AREA
RDL - RECESSED DOWNLIGHTCL - COVE LIGHTSPLL - SUSPENDEND LINEAR LIGHTJL - JOINERY LIGHTSPL - SUSPENDED PENDENT LIGHT
#1RDL3APATHWAY
₹3,06,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | PATHWAY | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1830 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 85 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹3,06,000 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#2RDL6TOILET
₹15,750
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TOILET | — |
| Mounting Type | LED | — |
| Dimension | DIA = 59mm, H = 72mm, CUT OUT DIA = 55mm | — |
| Wattage | 7W | — |
| Lumen Output | 496 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 49° | — |
| IP Rating | IP44 | — |
| Optics | LENS / REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 21 NOS | — |
| Unit Rate (INR) | ₹750 | — |
| Total Amount (INR) | ₹15,750 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#3RDL6ATOILET
₹5,250
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TOILET | — |
| Mounting Type | LED | — |
| Dimension | DIA = 59mm, H = 72mm, CUT OUT DIA = 55mm | — |
| Wattage | 7W | — |
| Lumen Output | 496 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 15° | — |
| IP Rating | IP44 | — |
| Optics | LENS / REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 7 NOS | — |
| Unit Rate (INR) | ₹750 | — |
| Total Amount (INR) | ₹5,250 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#4RDL7CONFERENCE ROOM,
METTING ROOM
₹2,44,800
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | CONFERENCE ROOM, METTING ROOM | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | <90 | — |
| CCT | 2700K-6500K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS / REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 68 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹2,44,800 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#5SLL1CONFERENCE ROOM
₹4,00,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | CONFERENCE ROOM | — |
| Mounting Type | LED | — |
| Dimension | L = 30000mm, H = 100mm, w = 52mm | — |
| Wattage | 18W/M | — |
| Lumen Output | 1728 LM | — |
| CRI | <90 | — |
| CCT | 2700K-6500K | — |
| Beam Angle | 99° | — |
| IP Rating | IP20 | — |
| Optics | MICRO PRISMATIC | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | DALI | — |
| Material / Finish | T.BA | — |
| Quantity | 2 NOS | — |
| Unit Rate (INR) | ₹2,00,000 | — |
| Total Amount (INR) | ₹4,00,000 | — |
| Remarks | RECTANGLE FORMATION LENGTH = 30000mm | REFER DRAWING FOR FORAMTION | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#6SLL2CONFERENCE ROOM
₹3,00,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | CONFERENCE ROOM | — |
| Mounting Type | LED | — |
| Dimension | L = 22000mm, H = 100mm, w = 52mm | — |
| Wattage | 18W/M | — |
| Lumen Output | 1728 LM | — |
| CRI | <90 | — |
| CCT | 2700K-6500K | — |
| Beam Angle | 99° | — |
| IP Rating | IP20 | — |
| Optics | MICRO PRISMATIC | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | DALI | — |
| Material / Finish | T.BA | — |
| Quantity | 2 NOS | — |
| Unit Rate (INR) | ₹1,50,000 | — |
| Total Amount (INR) | ₹3,00,000 | — |
| Remarks | RECTANGLE FORMATION LENGTH = 22000mm | REFER DRAWING FOR FORAMTION | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#7CL2BANQUET PRE FUNCTION
₹4,365
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | BANQUET PRE FUNCTION | — |
| Mounting Type | LED | — |
| Dimension | W = 14mm, H = 14mm | — |
| Wattage | 20W/M | — |
| Lumen Output | 1632 LM/M | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP20 | — |
| Optics | DIFFUSER | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE | — |
| Quantity | 9 MTRS | — |
| Unit Rate (INR) | ₹485 | — |
| Total Amount (INR) | ₹4,365 | — |
| Components / Accessories | ||
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹11,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#8CL3MEETING ROOM,
CONFERENCE ROOM
₹46,875
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | MEETING ROOM, CONFERENCE ROOM | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 125 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹46,875 | — |
| Components / Accessories | ||
| SIDE BEND - IP | IP20 | — |
| SIDE BEND - Control | — | — |
| SIDE BEND - Amount | ₹43,750 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹16,875 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹77,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#9JL1TOILET
₹1,125
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | TOILET | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 5 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹1,125 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 490 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP65 | — |
| LED - Control | SWITCH ON/OFF | — |
| LED - Amount | ₹1,000 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹9,400 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#10JL3MEETING ROOM
₹8,640
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | MEETING ROOM | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 10mm, H = 13mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP33 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 72 MTRS | — |
| Unit Rate (INR) | ₹120 | — |
| Total Amount (INR) | ₹8,640 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹9,720 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹37,600 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹15,39,150
06
18 items · ₹7,43,065A4-1F-PUBLIC AREA
ARCHITECTURAL LIGHTING - VIVANTA FF - PUBLIC AREA
RDL - RECESSED DOWNLIGHTCL - COVE LIGHTSLL - SURFACE LINEAR LIGHTJL - JOINERY LIGHTSPL - SUSPENDED PENDENT LIGHT
#1RDL2TREATMENT ROOM
₹22,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TREATMENT ROOM | — |
| Mounting Type | LED | — |
| Dimension | DIA = 38mm, H = 95mm, CUT OUT DIA = 35mm | — |
| Wattage | 7W | — |
| Lumen Output | 665 LM | — |
| CRI | <90 | — |
| CCT | 4000K | — |
| Beam Angle | 15° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE | — |
| Quantity | 7 NOS | — |
| Unit Rate (INR) | ₹3,200 | — |
| Total Amount (INR) | ₹22,400 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#2RDL3APATHWAY,
SPA
₹72,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | PATHWAY, SPA | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1830 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 20 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹72,000 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#3RDL6TOILET
₹29,250
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TOILET | — |
| Mounting Type | LED | — |
| Dimension | DIA = 59mm, H = 72mm, CUT OUT DIA = 55mm | — |
| Wattage | 7W | — |
| Lumen Output | 496 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 49° | — |
| IP Rating | IP44 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 39 NOS | — |
| Unit Rate (INR) | ₹750 | — |
| Total Amount (INR) | ₹29,250 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#4RDL6ATOILET
₹8,250
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TOILET | — |
| Mounting Type | LED | — |
| Dimension | DIA = 59mm, H = 72mm, CUT OUT DIA = 55mm | — |
| Wattage | 7W | — |
| Lumen Output | 496 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 15° | — |
| IP Rating | IP44 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 11 NOS | — |
| Unit Rate (INR) | ₹750 | — |
| Total Amount (INR) | ₹8,250 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#5RDL11STEAM,
SAUNA
₹5,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | STEAM, SAUNA | — |
| Mounting Type | LED | — |
| Dimension | DIA = 94mm, H = 70mm | — |
| Wattage | 5W | — |
| Lumen Output | 352 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 31° | — |
| IP Rating | IP65 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 4 NOS | — |
| Unit Rate (INR) | ₹1,350 | — |
| Total Amount (INR) | ₹5,400 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#6RDL12FITNESS CENTRE
₹78,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | FITNESS CENTRE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 93mm, H = 129mm | — |
| Wattage | 15W | — |
| Lumen Output | 1872 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 48° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 20 NOS | — |
| Unit Rate (INR) | ₹3,900 | — |
| Total Amount (INR) | ₹78,000 | — |
| Remarks | TO BE SUPPLIED WITH TRIM SET | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#7RDL13SALON
₹61,200
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | SALON | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 45° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 17 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹61,200 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#8RDL15SALON
₹61,200
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | SALON | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1830 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS/REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 17 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹61,200 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#9SLL3FITNESS CENTRE
₹59,850
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | FITNESS CENTRE | — |
| Mounting Type | LED | — |
| Dimension | L = 3800mm, H = 100mm, w = 52mm | — |
| Wattage | 18W/M | — |
| Lumen Output | 1728 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 99° | — |
| IP Rating | IP20 | — |
| Optics | MICRO PRISMATIC | — |
| Adjustability | SUSPENDEND ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 6 NOS | — |
| Unit Rate (INR) | ₹9,975 | — |
| Total Amount (INR) | ₹59,850 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#10SLL4FITNESS CENTRE
₹25,200
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | FITNESS CENTRE | — |
| Mounting Type | LED | — |
| Dimension | L = 3200mm, H = 100mm, w = 52mm | — |
| Wattage | 18W/M | — |
| Lumen Output | 1728 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 99° | — |
| IP Rating | IP20 | — |
| Optics | MICRO PRISMATIC | — |
| Adjustability | SUSPENDEND ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 3 NOS | — |
| Unit Rate (INR) | ₹8,400 | — |
| Total Amount (INR) | ₹25,200 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#11SLL5FITNESS CENTRE
₹5,300
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | FITNESS CENTRE | — |
| Mounting Type | LED | — |
| Dimension | L = 1000mm, H = 100mm, w = 52mm | — |
| Wattage | 18W/M | — |
| Lumen Output | 1728 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 99° | — |
| IP Rating | IP20 | — |
| Optics | MICRO PRISTAMATIC | — |
| Adjustability | SUSPENDEND ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 2 NOS | — |
| Unit Rate (INR) | ₹2,650 | — |
| Total Amount (INR) | ₹5,300 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#12CL1ASALON
₹11,250
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | SALON | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 30 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹11,250 | — |
| Components / Accessories | ||
| SIDE BEND - IP | IP20 | — |
| SIDE BEND - Control | — | — |
| SIDE BEND - Amount | ₹10,500 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON/OFF | — |
| LED - Amount | ₹4,050 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹5,100 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#13CL3ATREATMENT ROOM
₹31,875
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | TREATMENT ROOM | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 85 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹31,875 | — |
| Components / Accessories | ||
| SIDE BEND - IP | IP20 | — |
| SIDE BEND - Control | — | — |
| SIDE BEND - Amount | ₹29,750 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹11,475 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹60,500 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#14CL5TREATMENT ROOM
₹9,900
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | TREATMENT ROOM | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 17mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | 10° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 11 MTRS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹9,900 | — |
| Components / Accessories | ||
| LED - Power | 10W/M | — |
| LED - Lumens | 1474 LM/M | — |
| LED - CCT | 3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹1,485 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹11,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#15JL1TOILET,
CHANGING ROOM
₹6,975
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | TOILET, CHANGING ROOM | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 31 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹6,975 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 490 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP65 | — |
| LED - Control | SWITCH ON/OFF | — |
| LED - Amount | ₹10,385 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹13,800 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#16JL2RECEPTION, DINING
₹2,700
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | RECEPTION, DINING | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 12 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹2,700 | — |
| Components / Accessories | ||
| SIDE BEND - IP | IP20 | — |
| SIDE BEND - Control | — | — |
| SIDE BEND - Amount | ₹2,400 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹1,620 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹27,500 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#18JL7TREATMENT ROOM
₹9,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | TREATMENT ROOM | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 40 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹9,000 | — |
| Components / Accessories | ||
| TOP BEND - IP | IP20 | — |
| TOP BEND - Control | — | — |
| TOP BEND - Amount | ₹8,000 | — |
| LED - Power | 5W/M | — |
| LED - Lumens | 490 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹5,400 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹18,800 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#19JL8FITNESS CENTRE
SAUNA, STEAM
₹6,750
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | FITNESS CENTRE SAUNA, STEAM | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 30 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹6,750 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 490 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON/OFF | — |
| LED - Amount | ₹6,000 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹8,800 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹7,43,065
07
3 items · ₹63,880A5-LIFT CABIN
ARCHITECTURAL LIGHTING - VIVANTA PUBLIC AREA LIFT CABIN
RDL - RECESSED DOWNLIGHTCL - COVE LIGHTJL - JOINERY LIGHT
#1RDL16LIFTCABIN
₹14,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | LIFTCABIN | — |
| Mounting Type | LED | — |
| Dimension | DIA = 50mm, H = 54mm, CUT OUT DIA = 46mm | — |
| Wattage | 3W | — |
| Lumen Output | 206 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 25° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 16 NOS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹14,400 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#2CL7LIFT CABIN
₹9,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | LIFT CABIN | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 24 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹9,000 | — |
| Components / Accessories | ||
| SIDE BEND - IP | IP20 | — |
| SIDE BEND - Control | — | — |
| SIDE BEND - Amount | ₹7,200 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON/OFF | — |
| LED - Amount | ₹3,240 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹9,200 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#3JL9LIFT CABIN
₹5,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | LIFT CABIN | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 24 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹5,400 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 450 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | — | — |
| LED - Amount | ₹8,040 | — |
| - - Power | 60W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹7,400 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹63,880
08
4 items · ₹96,95,400A6-Facade
ARCHITECTURAL LIGHTING - VIVANTA FACADE
LL - LINEAR LIGHT
#1LL1VIVANTA NORTH ELEVATION,
SOUTH ELEVATION,
EAST ELEVATION,
WEST ELEVATION
₹18,48,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | VIVANTA NORTH ELEVATION, SOUTH ELEVATION, EAST ELEVATION, WEST ELEVATION | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W =150mm, H = 50mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP33 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | AS PER ACP RAL FINISH | — |
| Quantity | 154 MTRS | — |
| Unit Rate (INR) | ₹12,000 | — |
| Total Amount (INR) | ₹18,48,000 | — |
| Components / Accessories | ||
| LED - Power | 10W/M | — |
| LED - Lumens | 600 LM/M | — |
| LED - CCT | 3000K | — |
| LED - IP | IP67 | — |
| LED - Control | SWITCH ON/OFF | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP67 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹30,800 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#2LL2VIVANTA SOUTH ELEVATION
₹1,20,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | VIVANTA SOUTH ELEVATION | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W =19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP33 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | — | — |
| Quantity | 80 MTRS | — |
| Unit Rate (INR) | ₹1,500 | — |
| Total Amount (INR) | ₹1,20,000 | — |
| Components / Accessories | ||
| LED - Power | 10W/M | — |
| LED - Lumens | 998 LM /M | — |
| LED - CCT | 3000K | — |
| LED - IP | IP67 | — |
| LED - Control | SWITCH ON/OFF | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP67 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹13,200 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#3LL3VIVANTA NORTH ELEVATION,
SOUTH ELEVATION
₹29,19,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | VIVANTA NORTH ELEVATION, SOUTH ELEVATION | — |
| Mounting Type | LED | — |
| Dimension | W =20mm, H = 30mm | — |
| Wattage | 10W/M | — |
| Lumen Output | 600 LM/M | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | — | — |
| IP Rating | IP67 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | — | — |
| Quantity | 278 MTRS | — |
| Unit Rate (INR) | ₹10,500 | — |
| Total Amount (INR) | ₹29,19,000 | — |
| Components / Accessories | ||
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP67 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹44,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#4LL4VIVANTA NORTH ELEVATION,
SOUTH ELEVATION,
WEST ELEVATION
₹46,50,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | VIVANTA NORTH ELEVATION, SOUTH ELEVATION, WEST ELEVATION | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W =60mm, H = 24mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP33 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | AS PER ACP RAL FINISH | — |
| Quantity | 372 MTRS | — |
| Unit Rate (INR) | ₹12,500 | — |
| Total Amount (INR) | ₹46,50,000 | — |
| Components / Accessories | ||
| LED - Power | 10W/M | — |
| LED - Lumens | 600 LM/M | — |
| LED - CCT | 3000K | — |
| LED - IP | IP67 | — |
| LED - Control | SWITCH ON/OFF | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP67 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | ₹70,400 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹96,95,400
09
16 items · ₹9,43,540A7-TF - LANDSCAPE
ARCHITECTURAL LIGHTING - TF LANDSCAPE
SPL - SUSPENDED PENDENT LIGHTSWL - SURFACE WALL LIGHTSPK - SPIKE LIGHTFL - FLOOD LIGHTBL - BOLLARD LIGHTJL - JOINERY LIGHT
#1SPL1TF - LANDSCAPE
₹2,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | NA | — |
| Wattage | 4W | — |
| Lumen Output | 430 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP54 | — |
| Optics | DIFFUSER | — |
| Adjustability | SUSPENDED ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | T.B.A | — |
| Quantity | 16 NOS | — |
| Unit Rate (INR) | ₹150 | — |
| Total Amount (INR) | ₹2,400 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING HOLDERS | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#2SPL1ATF - LANDSCAPE
₹1,080
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | NA | — |
| Wattage | 7W | — |
| Lumen Output | 660 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP54 | — |
| Optics | DIFFUSER | — |
| Adjustability | SUSPENDED ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | T.B.A | — |
| Quantity | 6 NOS | — |
| Unit Rate (INR) | ₹180 | — |
| Total Amount (INR) | ₹1,080 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING HOLDERS | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#3SPK1TF - LANDSCAPE
₹18,500
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 45mm, BODY H = 75mm, H =85mm | — |
| Wattage | 5W | — |
| Lumen Output | 224 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | 33° | — |
| IP Rating | IP66 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 10 NOS | — |
| Unit Rate (INR) | ₹1,850 | — |
| Total Amount (INR) | ₹18,500 | — |
| Remarks | TO BE SUPPLIED WITH SPIKE ARM | FINISH TO BE APPROVED BY CLIENT / ARCHITECT. | |
#4SPK4TF - LANDSCAPE
₹2,25,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 57mm,, H = 194mm FIXTURE H = 116mm, | — |
| Wattage | 4W | — |
| Lumen Output | 420 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | 17° | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | TILTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | GREY | — |
| Quantity | 94 NOS | — |
| Unit Rate (INR) | ₹2,400 | — |
| Total Amount (INR) | ₹2,25,600 | — |
| Remarks | TO BE SUPPLIED WITH SPIKE ARM | FINISH TO BE APPROVED BY CLIENT / ARCHITECT. | |
#5BL3
(option -1)TF - LANDSCAPE
₹1,24,800
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 175mm, H = 300mm | — |
| Wattage | 10W | — |
| Lumen Output | 960 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | ASSYMETRICAL | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 16 NOS | — |
| Unit Rate (INR) | ₹7,800 | — |
| Total Amount (INR) | ₹1,24,800 | — |
| Remarks | TO BE SUPPLIED WITH WATER PROOF CONNECTORS | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#6BL3
(option -2)TF - LANDSCAPE
-
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 43mm, FIX H = 130mm | — |
| Wattage | 9W | — |
| Lumen Output | 450 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | 30° | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | BLACK | — |
| Quantity | - NOS | — |
| Unit Rate (INR) | ₹5,700 | — |
| Total Amount (INR) | — | — |
| Remarks | TO BE SUPPLIED WITH WATER PROOF CONNECTORS | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#7BL3
(option -3)TF - LANDSCAPE
-
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | L = 170mm, H = 240mm, W = 100mm | — |
| Wattage | 8W | — |
| Lumen Output | 622 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP65 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | BLACK | — |
| Quantity | - NOS | — |
| Unit Rate (INR) | ₹7,000 | — |
| Total Amount (INR) | — | — |
| Remarks | TO BE SUPPLIED WITH WATER PROOF CONNECTORS | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#8BL3
(option -4)TF - LANDSCAPE
-
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | L = 104mm, H = 250mm, W = 60mm | — |
| Wattage | 8W | — |
| Lumen Output | 704 lm | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP65 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | BLACK | — |
| Quantity | - NOS | — |
| Unit Rate (INR) | ₹6,500 | — |
| Total Amount (INR) | — | — |
| Remarks | TO BE SUPPLIED WITH WATER PROOF CONNECTORS | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#9BL4
(option -1)TF - LANDSCAPE
₹68,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | L = 240mm. W = 240mm, H = 300mm | — |
| Wattage | 20W | — |
| Lumen Output | 1070 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP65 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 18 NOS | — |
| Unit Rate (INR) | ₹3,800 | — |
| Total Amount (INR) | ₹68,400 | — |
| Remarks | TO BE SUPPLIED WITH WATER PROOF CONNECTORS | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#10BL4
(option -2)TF - LANDSCAPE
-
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 200mm. H = 400mm | — |
| Wattage | 12W | — |
| Lumen Output | 771 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP65 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | - NOS | — |
| Unit Rate (INR) | ₹8,000 | — |
| Total Amount (INR) | — | — |
| Remarks | TO BE SUPPLIED WITH WATER PROOF CONNECTORS | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#11BL4
(option -3)TF - LANDSCAPE
-
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 260mm, H = 68mm | — |
| Wattage | 18W | — |
| Lumen Output | 1650 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP65 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | - NOS | — |
| Unit Rate (INR) | ₹7,000 | — |
| Total Amount (INR) | — | — |
| Components / Accessories | ||
| - - Power | 0- | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP65 | — |
| - - Control | — | — |
| Remarks | TO BE SUPPLIED WITH WATER PROOF CONNECTORS | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#12BL4
(option -4)TF - LANDSCAPE
-
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 100mm H = 270mm | — |
| Wattage | 8W | — |
| Lumen Output | 750 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP65 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | - NOS | — |
| Unit Rate (INR) | ₹3,500 | — |
| Total Amount (INR) | — | — |
| Remarks | TO BE SUPPLIED WITH WATER PROOF CONNECTORS | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#13SWL1TF - LANDSCAPE
₹99,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | L = 260mm, H = 100mm | — |
| Wattage | 11W | — |
| Lumen Output | 704 LM | — |
| CRI | >90 | — |
| CCT | 3000K | — |
| Beam Angle | 101° X 70° | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 22 NOS | — |
| Unit Rate (INR) | ₹4,500 | — |
| Total Amount (INR) | ₹99,000 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#14PL6TF - LANDSCAPE
₹28,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA =130mm, H = 222mm, W = 216mm | — |
| Wattage | 70W | — |
| Lumen Output | 5924 LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | 47° | — |
| IP Rating | IP66 | — |
| Optics | REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 4 NOS | — |
| Unit Rate (INR) | ₹7,000 | — |
| Total Amount (INR) | ₹28,000 | — |
| Components / Accessories | ||
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 3m INCLUDING LUMINARIE | FINISH: T.B.A - IP | IP65 | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 3m INCLUDING LUMINARIE | FINISH: T.B.A - Control | — | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 3m INCLUDING LUMINARIE | FINISH: T.B.A - Amount | 58000 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#15JL1TF - LANDSCAPE
₹39,825
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP33 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 177 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹39,825 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 490 LM/M | — |
| LED - CCT | 3000K | — |
| LED - IP | IP65 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | 59295 | — |
| - - Power | 60W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP67 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | 66000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#15JL2TF - LANDSCAPE
₹43,650
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image | | — |
| Location | TF - LANDSCAPE | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP33 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 194 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹43,650 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 490 LM/M | — |
| LED - CCT | 3000K | — |
| LED - IP | IP65 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | 64990 | — |
| - - Power | 60W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP67 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | 44000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹9,43,540
10
7 items · ₹62,22,986.2A8-ALL TYPE ROOMS
ARCHITECTURAL LIGHTING - GINGER ALL TYPE ROOMS
RDL - RECESSED DOWNLIGHTJL - JOINERY LIGHTTL - TABLE LIGHTNL - NIGHT LAMP
#1RDL1FOYER
₹6,82,500
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | FOYER | — |
| Mounting Type | LED | — |
| Dimension | DIA = 62mm, H = 76mm, CUTOUT = 55mm | — |
| Wattage | 5W | — |
| Lumen Output | 299 LM | — |
| CRI | >90 | — |
| CCT | 2700K / 3000K | — |
| Beam Angle | 29° | — |
| IP Rating | IP20 | — |
| Optics | REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK TRIM + CHROME REFLECTOR | — |
| Quantity | 650 NOS | — |
| Unit Rate (INR) | ₹1,050 | — |
| Total Amount (INR) | ₹6,82,500 | — |
| Room Breakdown | ||
| TWIN ROOM (96) | 192 | — |
| QUEEN ROOM (226) | 452 | — |
| DISABLED ROOM (3) | 6 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#2RDL1ABEDROOM
₹13,65,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | BEDROOM | — |
| Mounting Type | LED | — |
| Dimension | DIA = 62mm, H = 76mm, CUTOUT = 55mm | — |
| Wattage | 5W | — |
| Lumen Output | 308 LM | — |
| CRI | >90 | — |
| CCT | 2700K / 3000K | — |
| Beam Angle | 46° | — |
| IP Rating | IP20 | — |
| Optics | REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 1,300 NOS | — |
| Unit Rate (INR) | ₹1,050 | — |
| Total Amount (INR) | ₹13,65,000 | — |
| Room Breakdown | ||
| TWIN ROOM (96) | 384 | — |
| QUEEN ROOM (226) | 904 | — |
| DISABLED ROOM (3) | 12 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#3RDL2BEDROOM
STUDY TABLE
₹8,74,800
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | BEDROOM STUDY TABLE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 50mm, H = 54mm, CUTOUT = 46mm | — |
| Wattage | 3W | — |
| Lumen Output | 197 LM | — |
| CRI | >90 | — |
| CCT | 2700K / 3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 972 NOS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹8,74,800 | — |
| Room Breakdown | ||
| TWIN ROOM (96) | 288 | — |
| QUEEN ROOM (226) | 678 | — |
| DISABLED ROOM (3) | 6 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#4RDL3TOILET, W/C & SHOWER
₹13,89,375
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | TOILET, W/C & SHOWER | — |
| Mounting Type | LED | — |
| Dimension | DIA = 94mm, H = 70mm, CUTOUT = 84mm | — |
| Wattage | 5W | — |
| Lumen Output | 350 LM | — |
| CRI | >90 | — |
| CCT | 2700K / 3000K | — |
| Beam Angle | 26° | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 975 NOS | — |
| Unit Rate (INR) | ₹1,425 | — |
| Total Amount (INR) | ₹13,89,375 | — |
| Room Breakdown | ||
| TWIN ROOM (96) | 288 | — |
| QUEEN ROOM (226) | 678 | — |
| DISABLED ROOM (3) | 9 | — |
| Remarks | THIS IS A PIN - HOLE LIGHT FIXTURE | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#5NL1FOYER,
BEDROOM
₹6,94,200
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | FOYER, BEDROOM | — |
| Mounting Type | LED | — |
| Dimension | DIA = 44mm, H = 56mm, CUTOUT = 40mm | — |
| Wattage | 1W | — |
| Lumen Output | 50 LM | — |
| CRI | >90 | — |
| CCT | 2700K / 3000K | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP44 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 975 NOS | — |
| Unit Rate (INR) | ₹712 | — |
| Total Amount (INR) | ₹6,94,200 | — |
| Room Breakdown | ||
| TWIN ROOM (96) | 288 | — |
| QUEEN ROOM (226) | 678 | — |
| DISABLED ROOM (3) | 9 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#6JL1LUGGAGE RACK
₹3,02,828.2
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | LUGGAGE RACK | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 20mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | BLACK DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | BLACK | — |
| Quantity | 898.6 MTRS | — |
| Unit Rate (INR) | ₹337 | — |
| Total Amount (INR) | ₹3,02,828.2 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K / 3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹1,21,311 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹2,43,750 | — |
| Room Breakdown | ||
| TWIN ROOM (96) | 259.2 | — |
| QUEEN ROOM (226) | 632.8 | — |
| DISABLED ROOM (3) | 6.6 | — |
| Remarks | TO BE SUPPLIED WITH BLACK DIFFUSER, MOUNTING CLIPS & END CAPS. | |
#7JL2BED HEAD BOARD
₹1,65,120
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | BED HEAD BOARD | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 17mm, H = 14mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 1,100.8 MTRS | — |
| Unit Rate (INR) | ₹150 | — |
| Total Amount (INR) | ₹1,65,120 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K / 3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹1,40,352 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹2,43,750 | — |
| Room Breakdown | ||
| TWIN ROOM (96) | 326.4 | — |
| QUEEN ROOM (226) | 768.4 | — |
| DISABLED ROOM (3) | 6 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹62,22,986.2
11
4 items · ₹6,68,640A9-GINGER CORRIDOR
ARCHITECTURAL LIGHTING - CORRIDOR
RDL - RECESSED DOWNLIGHTSWL - SURFACE WALL LIGHTJL - JOINERY LIGHT
#1RDL1CORRIDOR
₹2,10,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | CORRIDOR | — |
| Mounting Type | LED | — |
| Dimension | DIA = 62mm, H = 76mm, CUTOUT = 55mm | — |
| Wattage | 5W | — |
| Lumen Output | 299 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 29° | — |
| IP Rating | IP20 | — |
| Optics | REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 25 NOS | — |
| Unit Rate (INR) | ₹1,050 | — |
| Total Amount (INR) | ₹2,10,000 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#2RDL2BCORRIDOR
₹3,60,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | CORRIDOR | — |
| Mounting Type | LED | — |
| Dimension | DIA = 50mm, H = 54mm, CUTOUT = 46mm | — |
| Wattage | 3W | — |
| Lumen Output | 197 LM | — |
| CRI | >90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 16° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 50 NOS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹3,60,000 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#3RDL3LIFT
₹79,800
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | LIFT | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 117mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 7 NOS | — |
| Unit Rate (INR) | ₹1,425 | — |
| Total Amount (INR) | ₹79,800 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#4JL4LIFT
₹3,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | LIFT | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 17mm, H = 14mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 3 NOS | — |
| Unit Rate (INR) | ₹150 | — |
| Total Amount (INR) | ₹3,600 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹3,240 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP67 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹12,000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹6,68,640
12
2 items · ₹67,360A10-LIFT LOBBY
ARCHITECTURAL LIGHTING - GINGER PUBLIC AREA LIFT LOBBY
RDL - RECESSED DOWNLIGHTJL - JOINERY LIGHT
#1RDL4LIFT LOBBY
₹50,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | LIFT LOBBY | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 117mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | <90 | — |
| CCT | 2700K / 3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 14 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹50,400 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#2JL5LIFT LOBBY
₹2,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | LIFT LOBBY | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 17mm, H = 14mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 16 MTRS | — |
| Unit Rate (INR) | ₹150 | — |
| Total Amount (INR) | ₹2,400 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K / 3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | ₹2,160 | — |
| - - Power | 35W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | ₹12,400 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹67,360
13
25 items · ₹19,53,015A11-Public Area
ARCHITECTURAL LIGHTING - GINGER PUBLIC AREA
RDL - RECESSED DOWNLIGHTRLL - RECESSED LINEAR LIGHTJL - JOINERY LIGHTRMTL - RECESSED MAGNNET TRACK LIGHTLL - LINEAR LIGHTTSL - TRACK SPOT LIGHTCL - COVE LIGHT
#1RDL1MEETING ROOM
₹1,65,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | MEETING ROOM | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 60° | — |
| IP Rating | IP20 | — |
| Optics | LENS / REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 46 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹1,65,600 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#2RDL1AMEETING ROOM 02
₹10,800
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | MEETING ROOM 02 | — |
| Mounting Type | LED | — |
| Dimension | DIA = 62mm, H = 83mm, CUT OUT DIA = 55mm | — |
| Wattage | 5W | — |
| Lumen Output | 435 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 4 NOS | — |
| Unit Rate (INR) | ₹2,700 | — |
| Total Amount (INR) | ₹10,800 | — |
| Remarks | TO BE SUPPLIED WITH CHROME REFLECTOR & FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
#3RDL2RECEPTION
₹3,23,050
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | RECEPTION | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1826 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 71 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹3,23,050 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#4RDL2APATHWAY
₹9,100
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | PATHWAY | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1826 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 15° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 2 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹9,100 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#5RDL3SPORTS BAR
₹64,800
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | SPORTS BAR | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 18 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹64,800 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#6RDL4PATHWAY
₹75,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | PATHWAY | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 21 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹75,600 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#7RDL4APATHWAY
₹10,800
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | PATHWAY | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 15W | — |
| Lumen Output | 1487 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 3 NOS | — |
| Unit Rate (INR) | ₹3,600 | — |
| Total Amount (INR) | ₹10,800 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#8RDL5BUFFET COUNTERS
₹1,59,250
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | BUFFET COUNTERS | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 112mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1826 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 24° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 35 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹1,59,250 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#9RDL5ABUFFET COUNTERS
₹4,550
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | BUFFET COUNTERS | — |
| Mounting Type | LED | — |
| Dimension | DIA = 85mm, H = 117mm, CUT OUT DIA = 75mm | — |
| Wattage | 20W | — |
| Lumen Output | 1826 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 15° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | WHITE TRIM + CHROME REFLECTOR | — |
| Quantity | 1 NOS | — |
| Unit Rate (INR) | ₹4,550 | — |
| Total Amount (INR) | ₹4,550 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#10RDL6FITNESS CENTRE
₹58,800
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | FITNESS CENTRE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 93mm, H = 129mm | — |
| Wattage | 22W | — |
| Lumen Output | 1816 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 48° | — |
| IP Rating | IP20 | — |
| Optics | LENS / REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 12 NOS | — |
| Unit Rate (INR) | ₹4,900 | — |
| Total Amount (INR) | ₹58,800 | — |
| Remarks | TRIM TO BE SUPPLIED. FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#11RDL7MALE TOILET
₹9,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | MALE TOILET | — |
| Mounting Type | LED | — |
| Dimension | DIA = 59mm, H = 72mm, CUT OUT DIA = 55mm | — |
| Wattage | 7W | — |
| Lumen Output | 496 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 49° | — |
| IP Rating | IP20 | — |
| Optics | LENS / REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 12 NOS | — |
| Unit Rate (INR) | ₹750 | — |
| Total Amount (INR) | ₹9,000 | — |
| Remarks | RENDER TO BE TAKES FOR REFERENCE | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#12RDL7AFEMALE TOILET,
ACCESSIBLE TOILET
₹6,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | FEMALE TOILET, ACCESSIBLE TOILET | — |
| Mounting Type | LED | — |
| Dimension | DIA = 59mm, H = 72mm, CUT OUT DIA = 55mm | — |
| Wattage | 7W | — |
| Lumen Output | 496 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 15° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 8 NOS | — |
| Unit Rate (INR) | ₹750 | — |
| Total Amount (INR) | ₹6,000 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#13RDL8MALE TOILET,
FEMALE TOILET
₹13,275
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | MALE TOILET, FEMALE TOILET | — |
| Mounting Type | LED | — |
| Dimension | L = 148mm, W = 45mm, H = 50mm | — |
| Wattage | 12W | — |
| Lumen Output | 759 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 20° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 9 NOS | — |
| Unit Rate (INR) | ₹1,475 | — |
| Total Amount (INR) | ₹13,275 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#14RMTL1FITNESS CENTRE
₹21,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | FITNESS CENTRE | — |
| Mounting Type | THIS IS 3 No's of LINEAR TRACK OF 4700MM LENGTH | TO BE SUPPLIED WITH 2 METER TRACK - 6 No's & 1 METER TRACK - 3 No's; INTERMEDIATE CONNECTOR - 2 NOS; POWER FEED UNIT - 3NOS; END CAPS - 3SET. | — |
| Dimension | L = 2000mm, W = 35mm, H = 86mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | BLACK | — |
| Quantity | 3 NOS | — |
| Unit Rate (INR) | ₹7,000 | — |
| Total Amount (INR) | ₹21,000 | — |
| Components / Accessories | ||
| Component 1 - IP | IP20 | — |
| Component 1 - Control | — | — |
| Component 1 - Amount | 10500 | — |
| LED - Power | 12W | — |
| LED - Lumens | 458 LM | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | 64800 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | 9900 | — |
| Remarks | REFER DRAWING FOR FORMATION | RUNNING METERS TO BE MEASURED AT SITE FOR EXACT QUANTITY | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#15RLL1RECEPTION
₹3,25,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | RECEPTION | — |
| Mounting Type | LED | — |
| Dimension | W = 68mm, H = 82mm | — |
| Wattage | 20W/M | — |
| Lumen Output | 2056 LM/M | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 97° | — |
| IP Rating | IP20 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | DALI | — |
| Material / Finish | BLACK | — |
| Quantity | 50 MTRS | — |
| Unit Rate (INR) | ₹6,500 | — |
| Total Amount (INR) | ₹3,25,000 | — |
| Remarks | REFER DRAWING FOR FORMATION | RUNNING METERS TO BE MEASURED AT SITE FOR EXACT QUANTITY | FINISH TO BE CONFIRMED BY CLIENT / ARCHITECT. | |
#16LL1FITNESS CENTRE
₹57,500
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | FITNESS CENTRE | — |
| Mounting Type | LED | — |
| Dimension | W = 52mm, H = 100mm | — |
| Wattage | 20W/M | — |
| Lumen Output | 1824 LM/M | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 99° | — |
| IP Rating | IP20 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 23 MTRS | — |
| Unit Rate (INR) | ₹2,500 | — |
| Total Amount (INR) | ₹57,500 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#17CL1SPORTS BAR,
MEETING ROOM O1,
MEETING ROOM O2
₹27,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | SPORTS BAR, MEETING ROOM O1, MEETING ROOM O2 | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 72 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹27,000 | — |
| Components / Accessories | ||
| SILICONE PROFILE SIDE BEND - IP | IP20 | — |
| SILICONE PROFILE SIDE BEND - Control | — | — |
| SILICONE PROFILE SIDE BEND - Amount | 25200 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | 9720 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | 49500 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#18CL2RECEPTION,
MEETING ROOM 01
₹4,600
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | RECEPTION, MEETING ROOM 01 | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 16mm, H = 16mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP20 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 23 MTRS | — |
| Unit Rate (INR) | ₹200 | — |
| Total Amount (INR) | ₹4,600 | — |
| Components / Accessories | ||
| LED - Power | 10W/M | — |
| LED - Lumens | 1500 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | 3105 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | 22000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#19CL3TOILET
₹11,025
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | TOILET | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 49 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹11,025 | — |
| Components / Accessories | ||
| SILICONE PROFILE SIDE BEND - IP | IP20 | — |
| SILICONE PROFILE SIDE BEND - Control | — | — |
| SILICONE PROFILE SIDE BEND - Amount | 17150 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | SWITCH ON/OFF | — |
| LED - Amount | 6615 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | 7500 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#20CL4RECEPTION
₹33,075
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | RECEPTION | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 19mm, H = 18mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 147 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹33,075 | — |
| Components / Accessories | ||
| SILICONE PROFILE SIDE BEND - IP | IP20 | — |
| SILICONE PROFILE SIDE BEND - Control | — | — |
| SILICONE PROFILE SIDE BEND - Amount | 51450 | — |
| LED - Power | 14W/M | — |
| LED - Lumens | 2174 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | 19845 | — |
| - - Power | 150W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | 88000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#21JL1SPORTS BAR,
MEETING ROOM 01,
MEETING ROOM 02
₹9,225
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | SPORTS BAR, MEETING ROOM 01, MEETING ROOM 02 | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 12mm, H = 11mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 41 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹9,225 | — |
| Components / Accessories | ||
| SILICONE PROFILE TOP BEND - IP | IP20 | — |
| SILICONE PROFILE TOP BEND - Control | — | — |
| SILICONE PROFILE TOP BEND - Amount | 14350 | — |
| LED - Power | 10W/M | — |
| LED - Lumens | 900 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | 5535 | — |
| - - Power | 75W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | 18000 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#22JL2BUFFET COUNTERS,
SPORTS BAR,
PATHWAY VANITY,
RECEPTION
₹22,125
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |     | — |
| Location | BUFFET COUNTERS, SPORTS BAR, PATHWAY VANITY, RECEPTION | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 59 MTRS | — |
| Unit Rate (INR) | ₹375 | — |
| Total Amount (INR) | ₹22,125 | — |
| Components / Accessories | ||
| SILICONE PROFILE TOP BEND - IP | IP20 | — |
| SILICONE PROFILE TOP BEND - Control | — | — |
| SILICONE PROFILE TOP BEND - Amount | 20650 | — |
| LED - Power | 5W/M | — |
| LED - Lumens | 480 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | 7965 | — |
| - - Power | 75W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | 28800 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#23JL3BUFFET COUNTERS,
SPORTS BAR
₹4,200
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | BUFFET COUNTERS, SPORTS BAR | — |
| Mounting Type | — | — |
| Dimension | W = 10mm, H = 13mm | — |
| Wattage | -- | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | — | — |
| Quantity | 35 MTRS | — |
| Unit Rate (INR) | ₹120 | — |
| Total Amount (INR) | ₹4,200 | — |
| Components / Accessories | ||
| LED COB - Power | 6W/M | — |
| LED COB - Lumens | 450LM | — |
| LED COB - CCT | 2700K/3000K | — |
| LED COB - IP | IP33 | — |
| LED COB - Control | DALI | — |
| LED COB - Amount | 4725 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | 28200 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#24JL4BELOW VANITY
₹2,500
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |    | — |
| Location | BELOW VANITY | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP20 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 10 MTRS | — |
| Unit Rate (INR) | ₹250 | — |
| Total Amount (INR) | ₹2,500 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP65 | — |
| LED - Control | SWITCH ON/OFF | — |
| LED - Amount | 3500 | — |
| - - Power | 100W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | SWITCH ON/OFF | — |
| - - Amount | 3450 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
#25JL5LIFT
₹675
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | LIFT | — |
| Mounting Type | ALUMINIUM PROFILE | — |
| Dimension | W = 17mm, H = 14mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | DIFFUSED | — |
| IP Rating | IP33 | — |
| Optics | DIFFUSER | — |
| Adjustability | FIXED | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | ANODISED | — |
| Quantity | 3 MTRS | — |
| Unit Rate (INR) | ₹225 | — |
| Total Amount (INR) | ₹675 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 550 LM/M | — |
| LED - CCT | 2700K/3000K | — |
| LED - IP | IP20 | — |
| LED - Control | DALI | — |
| LED - Amount | 405 | — |
| - - Power | 75W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP20 | — |
| - - Control | DALI | — |
| - - Amount | 3600 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹19,53,015
14
1 items · ₹14,400A12-LIFT CABIN
ARCHITECTURAL LIGHTING - GINGER PUBLIC AREA LIFT CABIN
RDL - RECESSED DOWNLIGHT
#1RDL9LIFTCABIN
₹14,400
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | LIFTCABIN | — |
| Mounting Type | LED | — |
| Dimension | DIA = 50mm, H = 54mm, CUT OUT DIA = 46mm | — |
| Wattage | 3W | — |
| Lumen Output | 206 LM | — |
| CRI | <90 | — |
| CCT | 2700K/3000K | — |
| Beam Angle | 25° | — |
| IP Rating | IP20 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | REMOTE | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | WHITE | — |
| Quantity | 16 NOS | — |
| Unit Rate (INR) | ₹900 | — |
| Total Amount (INR) | ₹14,400 | — |
| Remarks | FINISH TO BE CONFIRMED BY CLIENT/ARCHITECT. | |
Section Total₹14,400
15
2 items · ₹5,29,325A13-GINGER FACADE
ARCHITECTURAL LIGHTING -GINGER FACADE
FL - FLOOD LIGHTLL - LINEAR LIGHT
#1FL1GINGER EAST ELEVATION, WEST ELEVATION
₹1,62,500
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | GINGER EAST ELEVATION, WEST ELEVATION | — |
| Mounting Type | LED | — |
| Dimension | DIA = 60mm, H = 155mm. BODY H = 147mm | — |
| Wattage | 7W | — |
| Lumen Output | 366 LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | 9° | — |
| IP Rating | IP66 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 65 NOS | — |
| Unit Rate (INR) | ₹2,500 | — |
| Total Amount (INR) | ₹1,62,500 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT. TO BE SUPPLIED WITH MOUNTING CLIPS | |
#2LL5GINGER FAÇADE
₹3,66,825
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | GINGER FAÇADE | — |
| Mounting Type | LED | — |
| Dimension | W =47mm, H = 83mm | — |
| Wattage | 15W/M | — |
| Lumen Output | 1400 LM/M | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | 12° | — |
| IP Rating | IP66 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON/OFF | — |
| Material / Finish | GRAY | — |
| Quantity | 67 MTRS | — |
| Unit Rate (INR) | ₹5,475 | — |
| Total Amount (INR) | ₹3,66,825 | — |
| Remarks | TO BE SUPPLIED WITH WALL MOUNTING CLIPS & END CAPS. | |
Section Total₹5,29,325
16
10 items · ₹38,57,700A14-GF - LANDSCAPE
ARCHITECTURAL LIGHTING - GF LANDSCAPE
PL - POLE LIGHTJL - JOINERY LIGHTSPK - SPIKE LIGHTBL - BOLLARD LIGHT
#1PL1GF - LANDSCAPE
₹3,60,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | GF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | FIX L =1000mm, H = 90mm, W = 150mm | — |
| Wattage | 54W | — |
| Lumen Output | 6193LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | T2 (140°x47°) | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 36 NOS | — |
| Unit Rate (INR) | ₹10,000 | — |
| Total Amount (INR) | ₹3,60,000 | — |
| Components / Accessories | ||
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - IP | IP65 | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - Control | — | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - Amount | ₹6,48,000 | — |
| Remarks | IP68 CONNECTORS NEEDS TO BE CONSIDERED… FINISH TO BE APPROVED BY CLIENT / ARCHITECT. | |
#2PL2GF - LANDSCAPE
₹32,500
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | GF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | FIX L =2000mm, H = 90mm, W = 150mm | — |
| Wattage | 107W | — |
| Lumen Output | 12386 LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | T2 (140°x47°) | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 1 NOS | — |
| Unit Rate (INR) | ₹32,500 | — |
| Total Amount (INR) | ₹32,500 | — |
| Components / Accessories | ||
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - IP | IP65 | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - Control | — | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - Amount | ₹10,500 | — |
| Remarks | IP68 CONNECTORS NEEDS TO BE CONSIDERED… FINISH TO BE APPROVED BY CLIENT / ARCHITECT. | |
#3PL3GF - LANDSCAPE
₹97,500
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | GF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | FIX L =2000mm, H = 90mm, W = 150mm | — |
| Wattage | 107W | — |
| Lumen Output | 12386 LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | T2 (140°x47°) | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 3 NOS | — |
| Unit Rate (INR) | ₹32,500 | — |
| Total Amount (INR) | ₹97,500 | — |
| Components / Accessories | ||
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - IP | IP65 | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - Control | — | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - Amount | ₹54,000 | — |
| Remarks | IP68 CONNECTORS NEEDS TO BE CONSIDERED… FINISH TO BE APPROVED BY CLIENT / ARCHITECT. | |
#4PL4GF - LANDSCAPE
₹5,10,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | GF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | POLE HEIGHT = 6000mm, FIX L =240mm, W =240mm | — |
| Wattage | 82W | — |
| Lumen Output | 4574 LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | FLOOD LIGHT- 43° | — |
| IP Rating | IP65 | — |
| Optics | LENS / REFLECTOR | — |
| Adjustability | ADJUSTABLE FLOOD LIGHT AT POLE TOP | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 17 NOS | — |
| Unit Rate (INR) | ₹30,000 | — |
| Total Amount (INR) | ₹5,10,000 | — |
| Components / Accessories | ||
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - IP | IP65 | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - Control | — | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - Amount | ₹6,37,500 | — |
| Remarks | 2 FLOOD LIGHT(21W) ON TOP OF THE LUMINARE FOR AREA LIGHTING. IP68 CONNECTORS NEEDS TO BE CONSIDERED… FINISH TO BE APPROVED BY CLIENT / ARCHITECT. | |
#5PL5GF - LANDSCAPE
₹56,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | GF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA =130mm, H = 222mm, W = 216mm | — |
| Wattage | 140W | — |
| Lumen Output | 11848LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | 47° | — |
| IP Rating | IP66 | — |
| Optics | REFLECTOR | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 2 NOS | — |
| Unit Rate (INR) | ₹28,000 | — |
| Total Amount (INR) | ₹56,000 | — |
| Components / Accessories | ||
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - IP | IP65 | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - Control | — | — |
| POLE SPEC: MARINE GRADE / ANTI-CORROSIVE POLE | WEATHER PROOF FUSE ACCESS WITH LEGRAND MCB, JUNCTION BOX | BASE PLATE AND FOUNDATION ACCESSORIES | ROOT MOUNTING KIT | POLE SHOULD BE DESIGNED TO WITHSTAND WIND SPEED OF 160 km/hr. | TOTAL HEIGHT: 6m INCLUDING LUMINARIE | FINISH: T.B.A - Amount | ₹36,000 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT. FLOOD MOUNTED ON POLE. | |
#6SPK1GF - LANDSCAPE
₹3,94,050
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | GF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 45mm, BODY H = 75mm, H =85mm | — |
| Wattage | 5W | — |
| Lumen Output | 452 LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | 33° | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 213 NOS | — |
| Unit Rate (INR) | ₹1,850 | — |
| Total Amount (INR) | ₹3,94,050 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#7SPK2GF - LANDSCAPE
₹38,850
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | GF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | DIA = 45mm, BODY H = 75mm, H =85mm | — |
| Wattage | 2W | — |
| Lumen Output | 201 LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | 33° | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | ADJUSTABLE | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 21 NOS | — |
| Unit Rate (INR) | ₹1,850 | — |
| Total Amount (INR) | ₹38,850 | — |
| Remarks | TO BE SUPPLIED WITH 900MM POLE WITH EARTH SPIKE. FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#8BL1GF - LANDSCAPE
₹4,32,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | GF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | L = 317m. W = 80mm, H = 1200mm | — |
| Wattage | 28W | — |
| Lumen Output | 2957LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | 100°x76° | — |
| IP Rating | IP65 | — |
| Optics | LENS | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 36 NOS | — |
| Unit Rate (INR) | ₹12,000 | — |
| Total Amount (INR) | ₹4,32,000 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#9BL2GF - LANDSCAPE
₹2,34,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |  | — |
| Location | GF - LANDSCAPE | — |
| Mounting Type | LED | — |
| Dimension | L = 240mm. W = 240mm, H = 1200mm | — |
| Wattage | 20W | — |
| Lumen Output | 1070 LM | — |
| CRI | >80 | — |
| CCT | 3000K | — |
| Beam Angle | 137° | — |
| IP Rating | IP65 | — |
| Optics | REFLECTOR | — |
| Adjustability | FIXED | — |
| Driver Type | INTEGRATED | — |
| Control | SWITCH ON / OFF | — |
| Material / Finish | BLACK | — |
| Quantity | 18 NOS | — |
| Unit Rate (INR) | ₹13,000 | — |
| Total Amount (INR) | ₹2,34,000 | — |
| Remarks | FINISH TO BE APPROVED BY CLIENT / ARCHITECT | |
#10JL1GF - LANDSCAPE
₹75,000
| Specification | BOQ Requirement | Proposed Product |
|---|---|---|
| Product Image |   | — |
| Location | GF - LANDSCAPE | — |
| Mounting Type | FLEXIBLE STAINLESS STEEL | — |
| Dimension | W = 6mm, H = 12mm | — |
| Wattage | — | — |
| Lumen Output | — | — |
| CRI | — | — |
| CCT | — | — |
| Beam Angle | — | — |
| IP Rating | IP33 | — |
| Optics | — | — |
| Adjustability | FLEXIBLE | — |
| Driver Type | — | — |
| Control | — | — |
| Material / Finish | STAINLESS STEEL | — |
| Quantity | 300 MTRS | — |
| Unit Rate (INR) | ₹250 | — |
| Total Amount (INR) | ₹75,000 | — |
| Components / Accessories | ||
| LED - Power | 6W/M | — |
| LED - Lumens | 490 LM/M | — |
| LED - CCT | 3000K | — |
| LED - IP | IP65 | — |
| LED - Control | SWITCH ON / OFF | — |
| LED - Amount | ₹1,05,000 | — |
| - - Power | 60W | — |
| - - Lumens | — | — |
| - - CCT | — | — |
| - - IP | IP65 | — |
| - - Control | SWITCH ON / OFF | — |
| - - Amount | ₹1,36,800 | — |
| Remarks | TO BE SUPPLIED WITH MOUNTING CLIPS & END CAPS. | |
Section Total₹38,57,700
